Testing Framework used for DioneOS System testing

DioneOS System was tested in environment that consisted of:
- cross-GDB
- OpenOCD server
- JTAG (Raisonance)
- logic analyser
- recording software
- master execution script
- scripts that analyse recorded data and prepare report

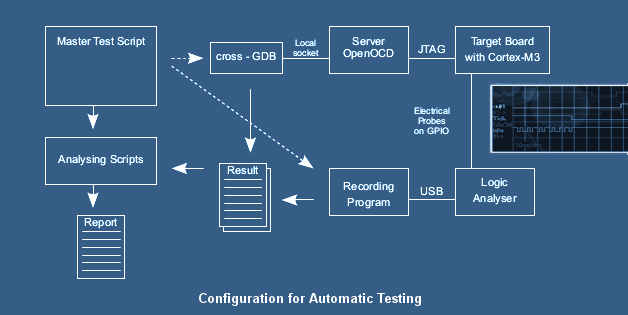

The items work in configuration illustrated in following figure:


Master Execution Script
The script controlled a sequence of operation executed during the test and mutual synchronization between started items:
- writing into the flash memory the test program executed on the processor
- starting GDB
- starting the test program on the target
- synchronized start of logic analized recording
- collecting results in files
- execution of analysing scripts and report creation

Running the Test

The Framework works under Linux on PC computer. In order to start the single test a command line interface is provided. The operations were extended to the set of tests, so all test can be started like a script. Next rthe summary report is build and available for evaluation.
